A universal horizontal optical measuring system designed for inspecting workpieces with complex profiles and surface geometries
BENKWELL JT26 Profile Projector

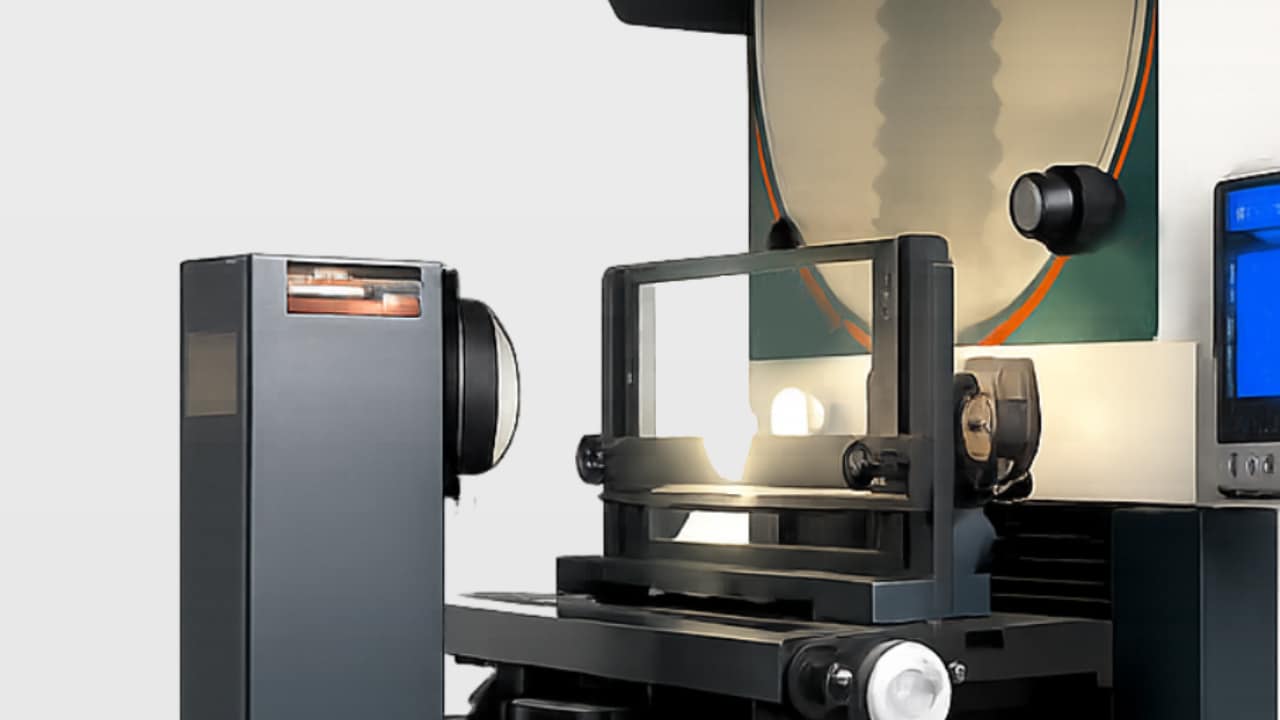

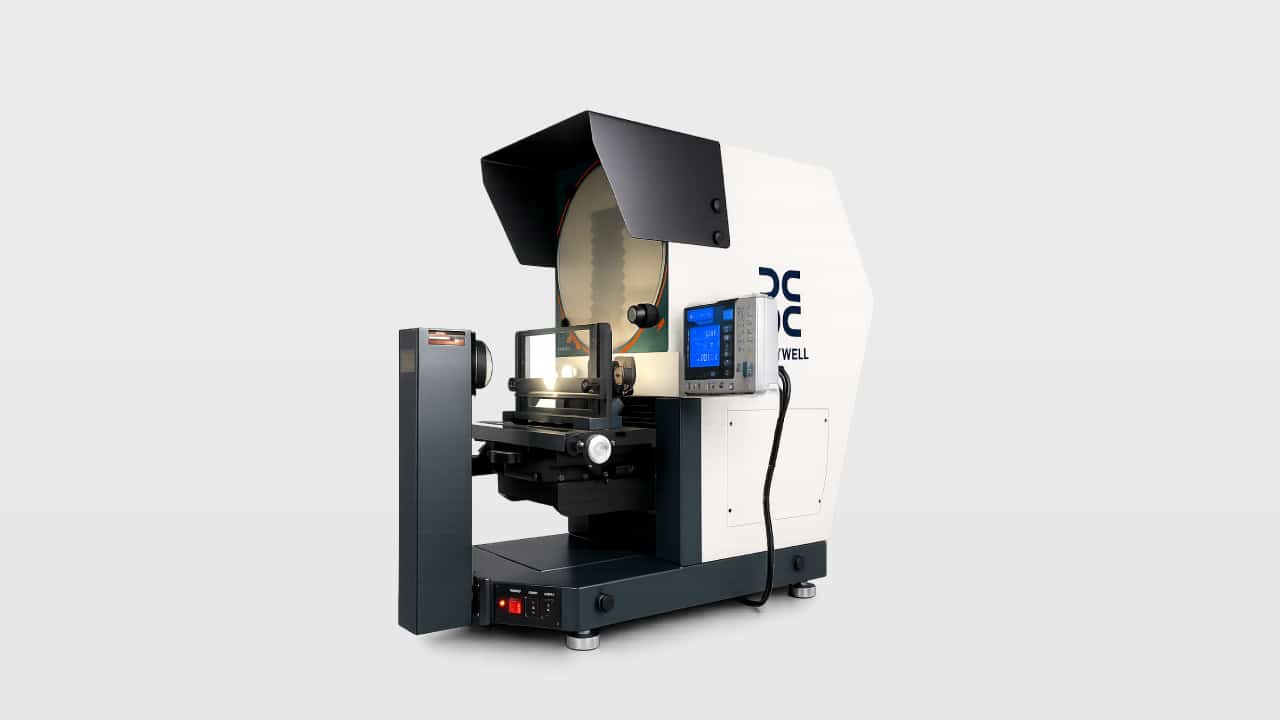

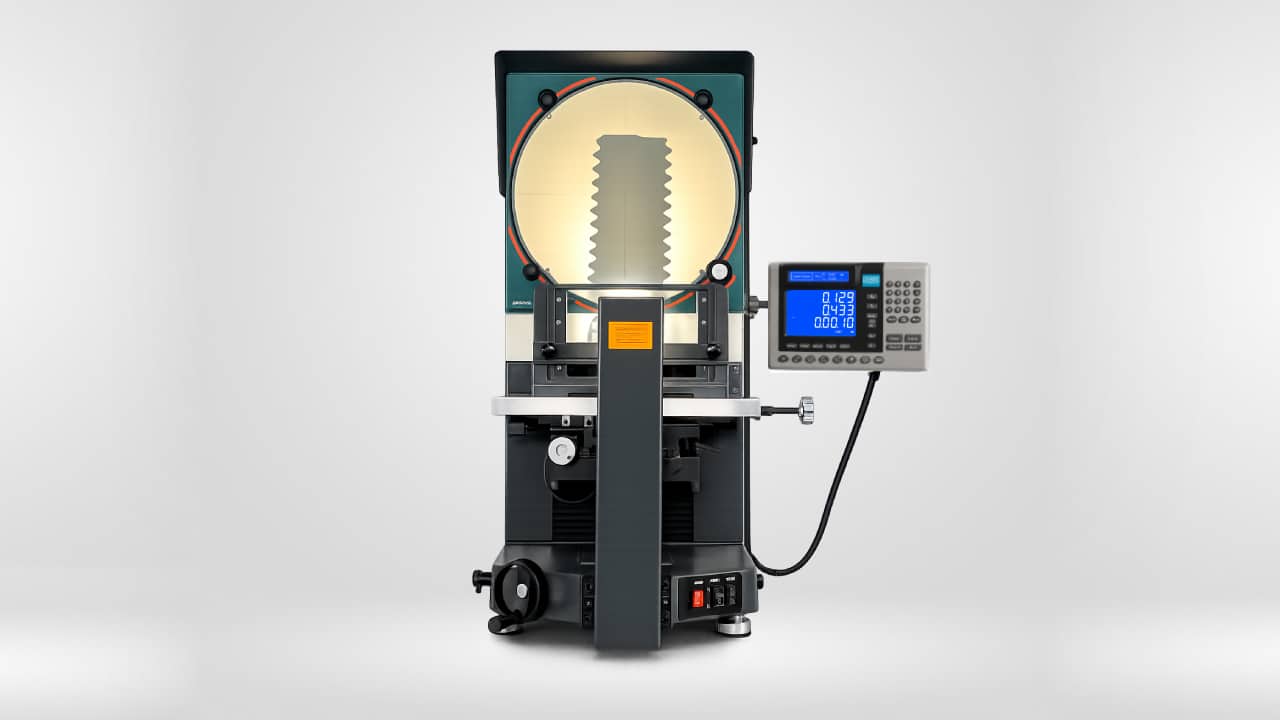

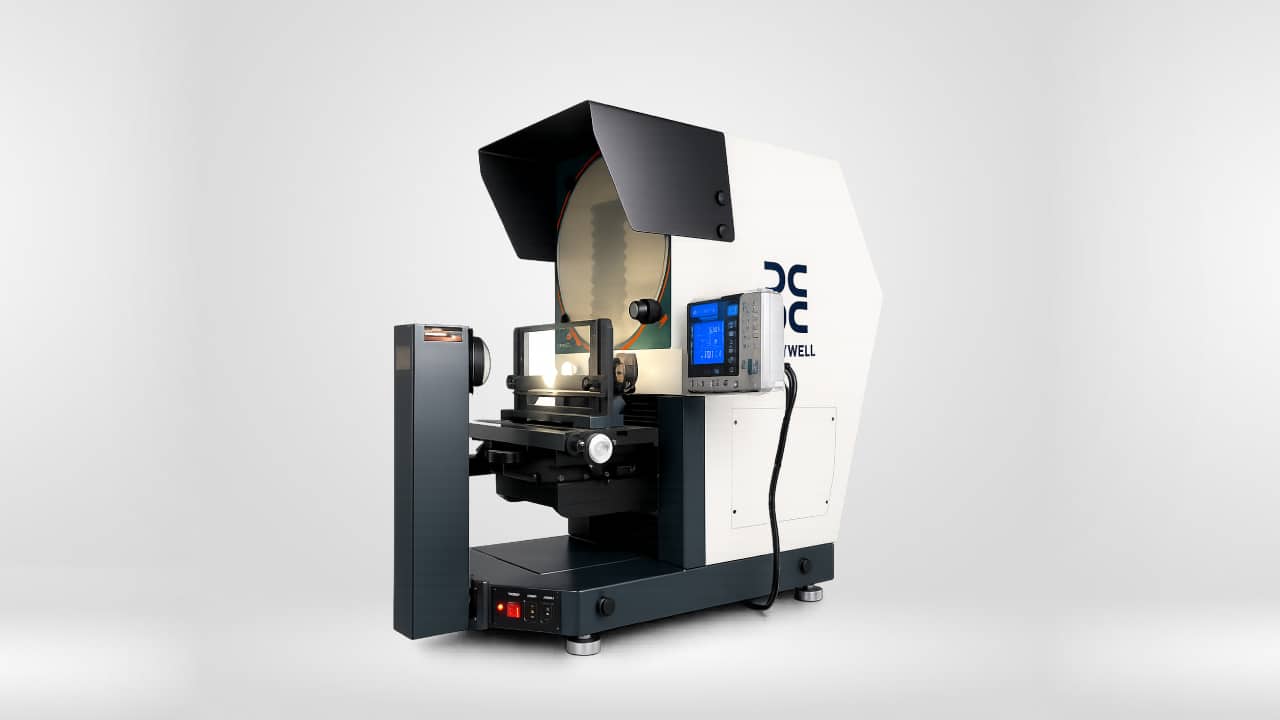

The BENKWELL JT26 Horizontal Profile Projector is a universal horizontal optical measuring system designed for inspecting workpieces with complex profiles and surface geometries. Featuring a large 400 mm projection screen, horizontal light path, and stable imaging performance, the JT26 supports a wide range of industrial measurement applications.
Features

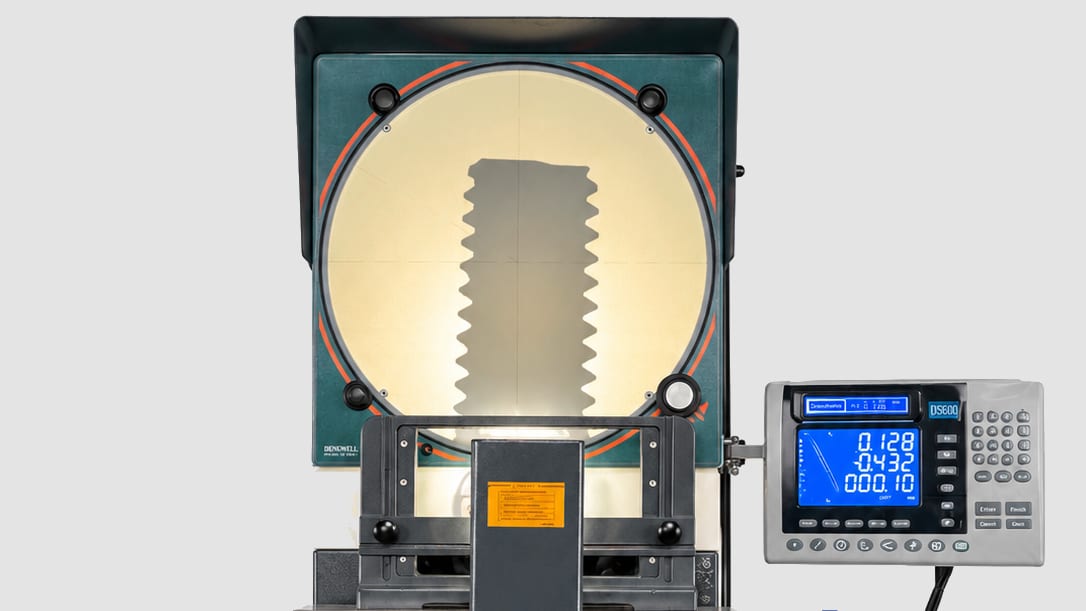

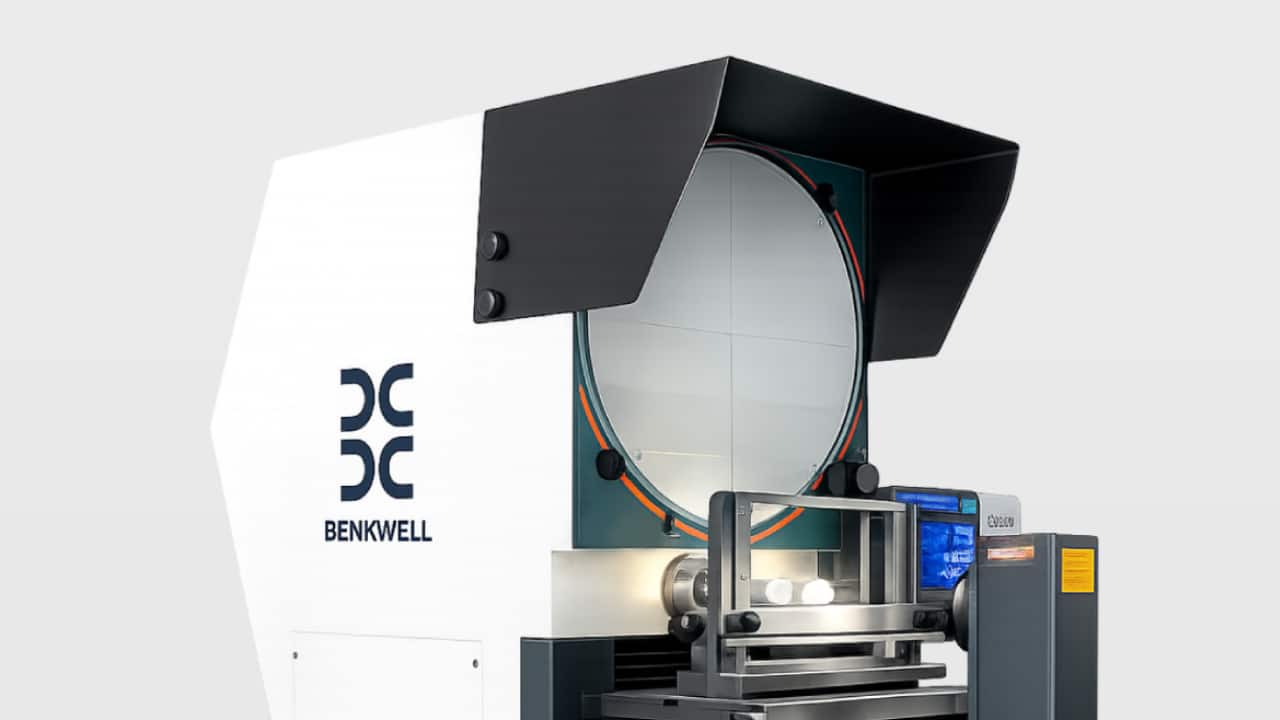

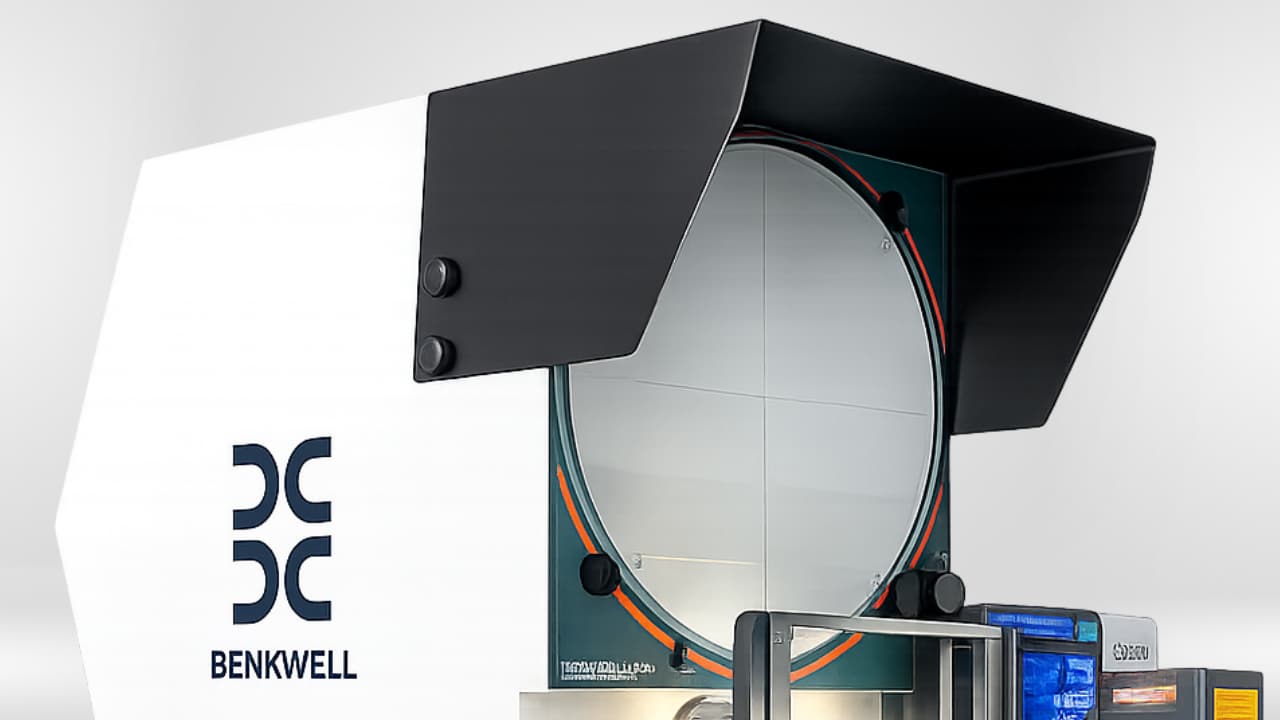

Large 400 mm Projection Screen
A large projection screen provides clear profile visualization and comfortable viewing during inspection and measurement processes.
Horizontal Optical System
Designed with a horizontal light path system that is suitable for shafts and longer workpieces, allowing consistent image projection across different sizes.
Adjustable Dual Illumination
Equipped with high and low intensity transmission and reflection illumination to support different materials, surfaces, and inspection requirements.
Stable Design & Easy Operation
Built with imported V-type linear guides, smooth stage movement, and digital display readout for convenient operation in industrial environments.
Applications
BENKWELL Rockwell Hardness TesterIdeal for:
Component Inspection
Manufacturing & Engineering Workshops
Laboratory & Quality Control
In The Box
Main Unit
10X Objective Lens (Optional: 20x, 50x, 100x)
Digital Display Unit (Mounted on Main Machine)
Square Worktable
Standard Presser Set
Elastic Presser Set
Power Cable
Dust Cover
Fuse Set (5A / Φ5 × 20)
24V / 150W Tungsten Halogen Lamp
Operation Manual
Product Certificate
Specification
| Model | BENKWELL JT26 | |||
| Screen Diameter | 400mm | |||
| Rotation Range | 0° – 360° | |||
| Rotating Indicator Scale | 1′ | |||
| Rotating Accuracy | 4′ | |||
| Magnification | 10x | 20x (optional) | 50x (optional) | 100x (optional) |
| Object Visual Field | φ40mm | φ20mm | φ8mm | φ4mm |
| Object Working Distance | 88mm | 81mm | 54mm | 45mm |
| Magnification Error | ≤0.08% | |||
| Worktable Area | 450×150 mm | |||
| X-Axis Travel | 0-250mm (resolution: 0.001mm) | |||
| Y-Axis Travel | 0-80mm (focusing direction) | |||
| Z-Axis Travel | 0-150mm (resolution: 0.001mm) | |||
| X and Y Axis Accuracy | (3 + L/75) μm
(L = measured length in mm) |
|||
| Load capacity of the worktable | 5 Kg | |||
| Transmission Illumination | 24V 150W Tungsten Halogen Lamp | |||
| Reflection Illumination | 24V 150W Tungsten Halogen Lamp with Reflector | |||
| Overall Dimensions (L x W x H) | 1069 × 440 × 978 mm | |||
| Total Weight | 210 Kg | |||
| Power supply | AC 220V, 50HZ | |||
